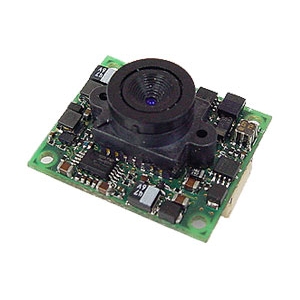

Product Name：26x22mm SONY Micro CCD camera + 9mmØ grand miniature lens
Moudel Number：UOI-9300
Feature：
●Mini size (26x22mm)
●Built-in 9mmØ grand miniature lens
●Special design for FBI, CIA…etc use
●Color camera PCB Module with SONY 1/4" SONY CCD sensor
●Employs Digital Signal Processor (DSP) chip-set for image control.
●Pixel number : NTSC=270K / PAL=320K
●High sensitivity, low smear, high anti-blooming, and high S/N ratio
●Build-in functions: Auto Electronic Shutter (AES),
●Auto Gain Control (AGC), Auto White Balance (AWB)
●Optional furnished with DC power wire and video wire
●Built-in anti-aliasing and IR-cut optical filter
◎SPECIFICATION
|
MODEL NO.
|
UOI-9300
|
|
|
TV SYSTEM
|
NTSC
|
PAL
|
|
IMAGE SENSOR
|
1/4-inch SONY CCD Image Sensor
|
|
|
CCD TOTAL PIXELS
|
542 (H) x 492 (V)
|
542 (H) x 582(V)
|
|
SCANNING SYSTEM
|
525 lines, 60 fields/sec
|
625 lines, 50 fields/sec
|
|
SYNC SYSTEM
|
Internal
|
|
|
MINIMUM ILLUMINATION
|
0.5Lux @ F1.2 AGC on
|
|
|
LENS & VIEW ANGLE
|
4 mm F2.8 / H (52°) X V (40°)
|
|
|
RESOLUTION
|
400 TVL / 470 TVL (Enhanced)
|
|
|
S / N RATIO
|
52dB ( MIN ) / 60dB ( TYP ) (AGC OFF)
|
|
|
WHITE BALANCE
|
Auto high speed White Balance ( Zero color rolling )
|
|
|
WHITE BALANCE RANGE
|
3000 --- 15000ºK
|
|
|
AUTO IRIS
|
A.E.S.
|
|
|
ELECTRONIC SHUTTER
|
1/60~1/120,000 sec.
|
1/50~1/120,000 sec.
|
|
VIDEO OUTPUT
|
1.0V p-p composite video at 75 ohm
|
|
|
GAMMA CORRECTION
|
0.45
|
|
|
MIRROR FUNCTION
|
ON / OFF switchable
|
|
|
GAIN CONTROL
|
AGC
|
|
|
OPERATION TEMPERATURE
|
-20℃ TO 50℃
|
|
|
OPERATIONAL HUMIDITY
|
within 85﹪RH
|
|
|
POWER SUPPLY
|
DC12V ±10% / 65mA
|
|
＊The specifications and appearance of the product may changed without notice.

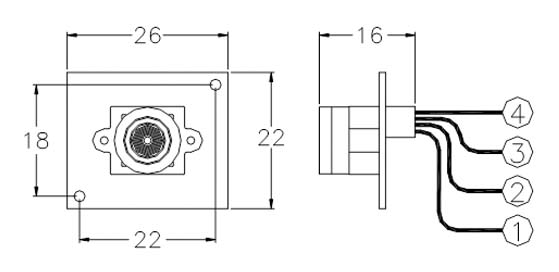

Dimension: Unit (mm)
.jpg)
P1: (RED), DC-POWER INPUT
P2: (BLACK), GND
P3: (WHITE), VIDEO OUTPUT
P4: MIRROR SELECTOR (OPTION)
