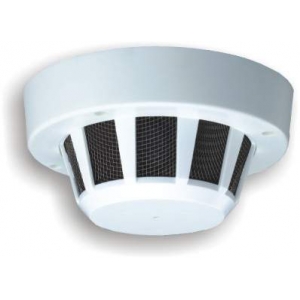

Product Name：High Resolution Hidden CCD camera
Moudel Number：UOK-45 (470TVL)
Feature：
●Color camera with SHARP 1/3" CCD sensor in smoke detector hidden case.
●Employs Digital Signal Processor (DSP) chip-set for image control.
●Pixel number : NTSC=380K / PAL= 440K (High Resolution).
●High sensitivity, low smear, high anti-blooming, and high S/N ratio.
●Build-in functions: Auto Electronic Shutter (AES), Auto Gain Control (AGC), Auto White Balance (AWB).
●Furnished with DC power cable and video cable.
●Built-in anti-aliasing and IR-cut optical filter.
◎SPECIFICATIONS
|
Model Type
|
UOK-45
|
|
Image Pick-up Device
|
SHARP 1/3" CCD High Resolution
|
|
Effective Picture Elements
|
NTSC:768*494,PAL: 752*582(H*V)
|
|
Horizontal Resolution
|
470 TV lines
|
|
Minimum Illumination
|
0.2 LUX @ F2.0
|
|
S/N Ratio
|
More than 48 dB
|
|
Auto Electronic Shutter
|
NTSC:1/60s~1/100,000s, PAL:1/50s~1/110,000s
|
|
Gamma Characteristic
|
0.45
|
|
Lens Furnished
|
Pinhole lens 4.3mm / F2.0
|
|
Gain Control
|
Automatically
|
|
White Balance
|
Automatically (2500K~9500K)
|
|
Synchronous System
|
Negative sync. Internal
|
|
Video Output
|
1 Vp-p Composite Video / 75 Ohms.
|
|
Power Supply
|
DC 12V / 100 mA
|
|
Operating Temp.
|
-10℃ to 50℃ (14℉ to 122℉)
|
|
Dimensions
|
130 mm(Φ) X 58 mm(H)
|
|
Audio Output (Option)
|
2 Vp-p / 50 Ohms. RCA connector.
|
SIZE DIMENSION
.jpg)
