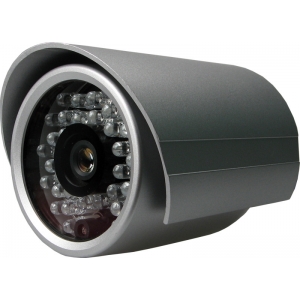

Product Name:1/3" Sharp CCD Weatherproof 36pcs IR LED camera
Moudel Number:UOR-41B36
Feature:
●Bullet color camera with SHARP 1/3" CCD sensor.
●Employs Digital Signal Processor (DSP) chip-set for image control.
●Pixel number : NTSC=270K / PAL=320K.
●High sensitivity, low smear, high anti-blooming, and high S/N ratio.
●Build-in functions: Auto Electronic Shutter (AES), Auto Gain Control (AGC),
Auto White Balance(AWB).
●Built-in anti-aliasing and IR-pass(850nm) optical filter.
●Built-in IR-LED ,CCD color image automatically changed into B/W image in
low light environments.
Image Pick-up Device
|
SHARP 1/3" Color CCD
|
Effective Picture Elements
|
NTSC: 510*492, PAL: 500*582 (H*V)
|
Horizontal Resolution
|
380 horizontal TV lines
|
Minimum Illumination
|
0 LUX with built-in IR-LED
|
S/N Ratio
|
More than 48 dB
|
Auto Electronic Shutter
|
NTSC:1/60s~1/100,000s, PAL:1/50s~1/110,000s
|
Gain Control
|
Automatically.
|
White Balance
|
Automatically (2500K~9500K)
|
Gamma Characteristic
|
0.45
|
Lens Furnished
|
Board Lens 8.0 mm / F2.0 (optional: 4.3 ,6.0 ,12 mm)
|
Synchronous System
|
Internal, Negative sync.
|
Video Output
|
1 Vp-p Composite Video / 75 Ohms.
|
Power Supply
|
12V DC / 300 mA
|
Operating Temp.
|
-10℃ to 50℃ (14℉ to 122℉)
|
Water Resistance
|
IP66
|
IR LED
|
36 Units of 850nm IR LED.
|
IR Project Distance
|
20 Meters
|
Dimensions
|
82mm(φ) *110 mm (L)
|
