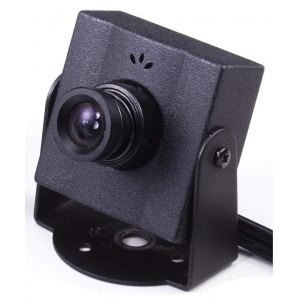

Product Name：1/3" Sharp Mini Case CCD camera
Moudel Number：UOS-41
Feature：
●Color camera in metal case with SHARP 1/3" CCD sensor
●Employs Digital Signal Processor (DSP) chip-set for image control
●Pixel number : NTSC=270K / PAL=320K
●High sensitivity, low smear, high anti-blooming, and high S/N ratio
●Build-in functions: Auto Electronic Shutter (AES), Auto Gain Control (AGC),
Auto White Balance (AWB)
●Small size (36x36) and furnished with DC power cable and video cable
●Built-in anti-aliasing and IR-cut optical filter
◎SPECIFICATIONS
|
Image Pick-up Device
|
SHARP 1/3" Color CCD
|
|
Effective Picture Elements
|
NTSC: 510*492, PAL: 500*582 (H*V)
|
|
Horizontal Resolution
|
380 TV lines
|
|
Minimum Illumination
|
0.1 LUX @ F2.0
|
|
S/N Ratio
|
More than 48 dB
|
|
Auto Electronic Shutter
|
NTSC:1/60s~1/100,000s, PAL:1/50s~1/110,000s
|
|
Gamma Characteristic
|
0.45
|
|
Lens Furnished
|
Corn lens 3.7mm / F2.0 (optional: 4.3 / 6.0mm or Pinhole lens@F3.5)
|
|
Gain Control
|
Automatically
|
|
White Balance
|
Automatically (2500K~9500K)
|
|
Synchronous System
|
Negative sync. Internal
|
|
Video Output
|
1 Vp-p Composite Video / 75 Ohms.
|
|
Power Supply
|
DC 12V / 80 mA
|
|
Operating Temp.
|
-10℃ to 50℃ (14℉ to 122℉)
|
|
Dimensions
|
36 mm(L) *36 mm(W) * 20 mm(H)
|

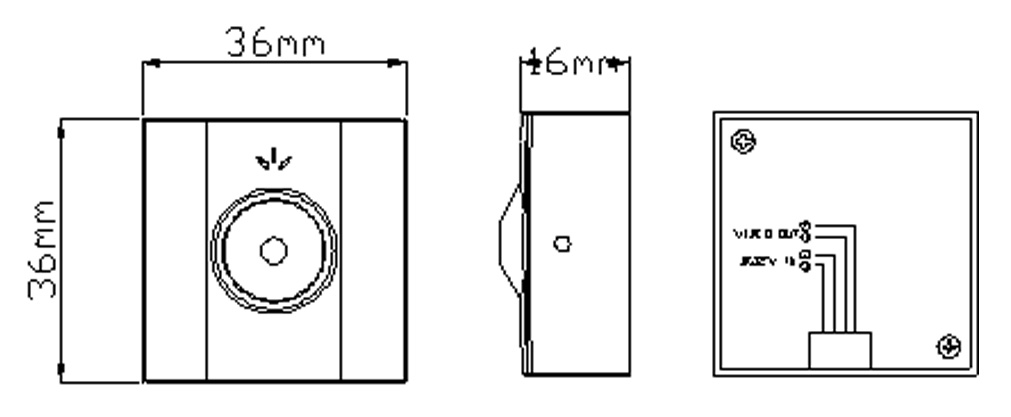

SIZE DIMENSION
(1).jpg)
