Product Name：1/3" SONY CCD (Day/Night)
Moudel Number：UOM-52DN (Day/Night)
Feature：

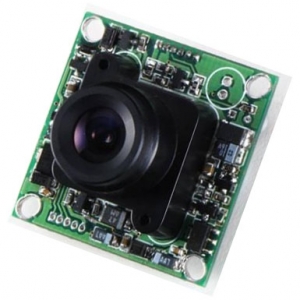

●Color camera PCB Module with SONY 1/3” CCD sensor
●Employs Digital Signal Processor (DSP) chip-set for image control
●Pixel number : NTSC=270K / PAL=320K. (Normal Resolution )
●High sensitivity, low smear, high anti-blooming and high S/N ratio
●Build-in functions: Auto Electronic Shutter (AES), Auto Gain Control (AGC), Auto White Balance (AWB)
●Small size (32x32) and furnished with DC power wire and video wire
●Built-in anti-aliasing and IR-pass(850nm) optical filter
◎SPECIFICATIONS
|
Model
|
UOM-52DN
|
|
Image Pick-up Device
|
SONY 1/3” CCD
|
|
Effective Picture Elements
|
NTSC:510*492,PAL:500*582 (H*V)
|
|
Horizontal Resolution
|
380 TV lines
|
|
Minimum Illumination
|
0.1LUX @ F2.0 / 0 LUX @ IR
|
|
S/N Ratio
|
More than 48 dB
|
|
Auto Electronic Shutter
|
NTSC:1/60s~1/100,000s, PAL:1/50s~1/110,000s
|
|
Gamma Characteristic
|
0.45
|
|
Lens Furnished
|
Board lens 3.6mm / F2.0(optional:2.5/4.3/6.0/8.0/12/16mm or Pinhole lens)
|
|
Gain Control
|
Automatically
|
|
White Balance
|
Automatically (2500K~9500K)
|
|
Synchronous System
|
Negative sync. Internal
|
|
Video Output
|
1 Vp-p Composite Video / 75 Ohms.
|
|
Power Supply
|
DC 12V / 100 mA
|
|
Operating Temp.
|
-10℃ to 50℃ (14℉ to 122℉)
|
|
Dimensions
|
32 mm(L) *32 mm (W) * 35 mm(H)
|
|
Audio
|
Optional
|

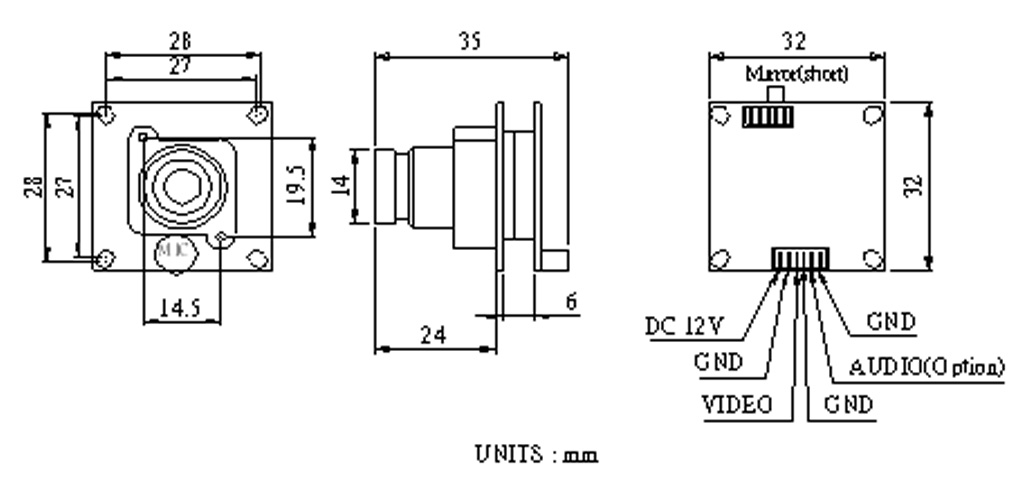

SIZE DIMENSION
(1).jpg)
