Product Name：1/3" Sharp CCD
Moudel Number：UOM-45 (470TVL)
Feature：

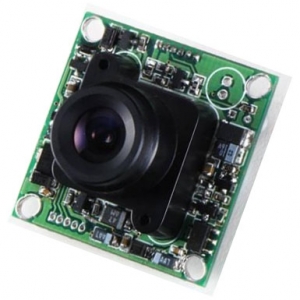

●Color camera PCB Module with SHARP 1/3“ CCD sensor
●Employs Digital Signal Processor (DSP) chip-set for image control
●Pixel number: NTSC=380K / PAL= 440K
●High sensitivity, low smear, high anti-blooming and high S/N ratio
●Build-in functions: Auto Electronic Shutter (AES), Auto Gain Control (AGC), Auto White Balance (AWB)
●Small size (32x32) and furnished with DC power wire and video wire
●Built-in IR-pass(850nm) optical filter
◎ SPECIFICATIONS
|
Image Pick-up Device
|
SHARP 1/3“ CCD High Resolution
|
|
Effective Picture Elements
|
NTSC: 768*494, PAL: 752*582(H*V)
|
|
Horizontal Resolution
|
470 TV lines
|
|
Minimum Illumination
|
0.1LUX @ F2.0 / 0LUX @ IR 850nm
|
|
S/N Ratio
|
More than 48 dB
|
|
Auto Electronic Shutter
|
NTSC:1/60s~1/100,000s, PAL:1/50s~1/110,000s
|
|
Gamma Characteristic
|
0.45
|
|
Gain Control
|
Automatically
|
|
White Balance
|
Automatically (2500K~9500K)
|
|
Synchronous System
|
Negative sync. Internal
|
|
Video Output
|
1 Vp-p Composite Video / 75 Ohms.
|
|
Power Supply
|
DC 12V / 100 mA
|
|
Operating Temp.
|
-10℃ to 50℃ (14℉ to 122℉)
|
|

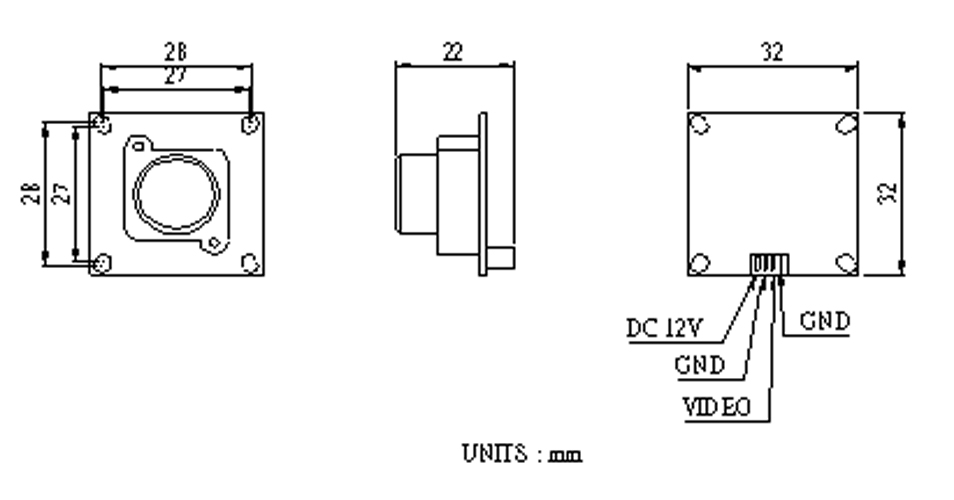

Dimensions
|
32 mm(L) *32 mm(W) * 27 mm(H)
|
