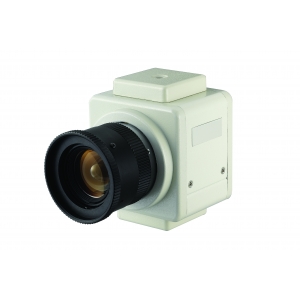

Product Name：Mini OSD CCD camera
Moudel Number：UOC-7535M (540TVL)
Feature：
●OSD (On Screen Display) function
●Mini size (64.5x50.5x66mm) with metal case
●SENS UP technology increase sensibility to 2X-64X
●Color camera PCB Module with SHARP 1/3“ CCD sensor
●Employs Digital Signal Processor (DSP) chip-set for image control
●Pixel number : NTSC=410K / PAL=470K
●High sensitivity, low smear, high anti-blooming, and high S/N ratio
●Build-in functions: mirror function, enhance, flickless, color bar,
●IR-Cut-Filter SW, gamma correction, day/night SW, title, mask
●Built-in anti-aliasing and IR-cut optical filter
◎SPECIFICATION
|
MODEL NO.
|
UOC-7535M
|
||
|
TV SYSTEM
|
NTSC
|
PAL
|
|
|
IMAGE SENSOR
|
1/3-inch Sharp I.L. CCD Image Sensor
|
||
|
CCD TOTAL PIXELS
|
~ 410K
|
~ 470K
|
|
|
SYNC SYSTEM
|
Internal
|
||
|
MINIMUM ILLUMINATION
|
0.012 lux@F1.2 /20 IRE AGC on B/W
0.0014 lux@F1.2 /20 IRE SENS-UP (32X) B/W
|
||
|
LENS & VIEW ANGLE
|
C/CS Mount
|
||
|
RESOLUTION
|
540 TVL
|
||
|
WHITE BALANCE
|
Mode
|
ATW / AWC
|
|
|
Range
|
3200 ~ 9000 ºK
|
||
|
S/N RATIO TYPICAL ( MAX )
|
50dB (MIN) / 58dB (TYP) (Gamma, Aperture, AGC, OFF)
|
||
|
SENSE UP
|
ON / OFF (Preset 8X ,Max 256X by OSD set)
|
||
|
H - MIRROR FUNCTION
|
OFF / ON (By OSD set)
|
||
|
V - MIRROR FUNCTION
|
OFF / ON (By OSD set)
|
||
|
B.L.C. FUNCTION
|
ON / OFF (By OSD set)
|
||
|
ZOOM FUNCTION
|
OFF / ON (By OSD set)
|
||
|
ENHANCE
|
HIGH / MID (By OSD set)
|
||
|
FLICKLESS
|
OFF / ON (By OSD set)
|
||
|
COLOR BAR
|
OFF / ON (By OSD set)
|
||
|
IR-Cut-FILTER SW
|
AUTO / EXT-CONT.
|
||
|
GAMMA CORRECTION
|
0.45 / 1.0 (By OSD set)
|
||
|
GAIN CONTROL
|
AGC ON / OFF (By OSD set)
|
||
|
AUTO IRIS
|
A.E.S. / DC-IRIS (By OSD set)
|
||
|
DAY/NIGHT SW
|
ON/OFF (By OSD set)
|
||
|
TITLE
|
By OSD set
|
||
|
MASK
|
By OSD set
|
||
|
ELECTRONIC SHUTTER
|
A.E.S.
|
1/60~1/120,000 sec.
|
1/50~1/120,000 sec.
|
|
FIX.
|
1/60(50),1/100(120),1/250,1/500,1/1000,1/2000,1/4000,1/10000sec.
|
||
|
VIDEO OUTPUT
|
1.0V p-p composite video at 75 ohm
|
||
|
OPERATION TEMPERATURE
|
-20℃ TO 50℃
|
||
|
OPERATIONAL HUMIDITY
|
within 85﹪RH
|
||
|
POWER SUPPLY
|
DC12V±1V / 150mA
|
||
