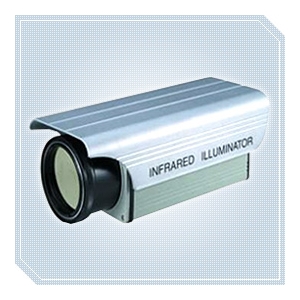

Product Name：IR Illuminator with 75M Range
Moudel Number：IRIL-75
Feature：
●IR filter together with halogen bulb produce 750nm IR illumination and the effective distance is more than 75M
●2~20 Lux adjustable. Automatically turn on the equipment when illumination below Lux setting
●0~50 Watts adjustable. Set up depending on monitoring environment
●Complied with IP66 weatherproof standards
●Suitable for outdoor installation. Additional housing is not necessary
n SPECIFICATION
|
MODEL NO.
|
IRIL-75
|
|
Construction
|
Die-cast Aluminum
|
|
Bulb
|
Halogan
|
|
Wave Length
|
IR filter Transmits 750nm IR lights
|
|
IR Project Distance
|
75 Meters
|
|
Field Angle
|
30° ~ 70°
|
|
Power Consumption
|
50 Watts
|
|
Power Switch
|
Auto (depending on "LX" setting)
|
|
Watts Adjustment
|
0 ~ 50 Watts Adjustable ("W" knob)
|
|
Illumination Adjustment
|
2 ~ 20 Lux Adjustable ("LX" knob)
|
|
Operating Temp.
|
-30°C ~ 50°C
|
|
Water Resistance
|
IP66
|
|
Dimensions
|
83 (W) x 73 (H) x 205 (L) mm
|
|
Weight
|
665g
|
＊The specifications and appearance of the product may changed without notice
