Product Name：1/6
Moudel Number：UOT-9800 (520TVL)
Feature：
●Special design with long size PCB
●Dentists’ favorite

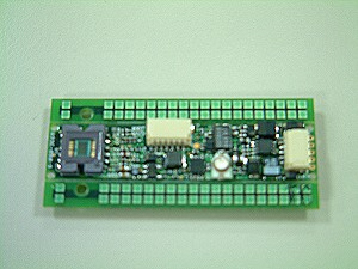

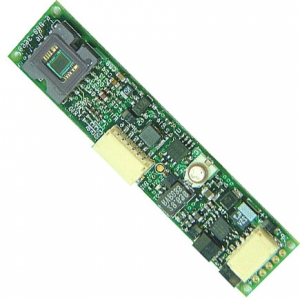

●Color camera PCB Module with SONY 1/6" CCD sensor
●Employs Digital Signal Processor (DSP) chip-set for image control.
●Pixel number : NTSC=410K / PAL=470K
●High sensitivity, low smear, high anti-blooming, and high S/N ratio
●Build-in functions: Auto Electronic Shutter (AES),
●Auto Gain Control (AGC), Auto White Balance (AWB)
●Small size (50x11.5) and furnished with DC power wire and video wire
●Built-in anti-aliasing and IR-cut optical filter
◎SPECIFICATION
|
MODE NO.
|
UOT-9800
|
|
|
TV SYSTEM
|
NTSC
|
PAL
|
|
IMAGE SENSOR
|
1/6-inch SONY CCD Image Sensor
|
|
|
CCD TOTAL PIXELS
|
811 (H) x 508 (V)
|
795 (H) x 596(V)
|
|
SCANNING SYSTEM
|
525 lines, 60 fields/sec
|
625 lines, 50 fields/sec
|
|
SYNC SYSTEM
|
Internal
|
|
|
MINIMUM ILLUMINATION
|
0.4 Lux @F1.2 AGC on
|
|
|
LENS & VIEW ANGLE
|
|
|
|
RESOLUTION
|
520 TVL / 580 TVL (Enhanced)
|
|
|
S / N RATIO
|
52dB ( MIN ) / 60dB ( TYP ) (AGC OFF)
|
|
|
WHITE BALANCE
|
Auto high speed White Balance ( Zero color rolling )
|
|
|
WHITE BALANCE RANGE
|
2200 –15000 ºK With S Filter
3200---10000 ºK With normal Filter
|
|
|
AUTO IRIS
|
A.E.S.
|
|
|
ELECTRONIC SHUTTER
|
1/60~1/120,000 sec.
|
1/50~1/120,000 sec.
|
|
VIDEO OUTPUT
|
1.0V p-p composite video at 75 ohm
|
|
|
GAMMA CORRECTION
|
0.45
|
|
|
GAIN CONTROL
|
AGC
|
|
|
OPERATION TEMPERATURE
|
-20℃ TO 50℃
|
|
|
OPERATIONAL HUMIDITY
|
within 85﹪RH
|
|
|
POWER SUPPLY
|
DC3.4V ±0.1V / 150mA & DC9.5V ±0.5V / 50mA
|
|
＊The specifications and appearance of the product may changed without notice.

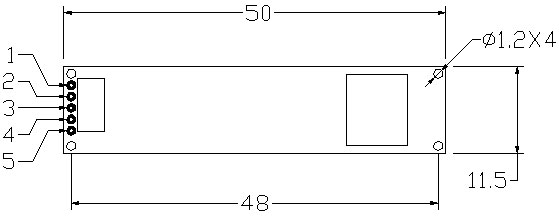

.jpg)
P1: (RED), [POWER1] +3.4V±0.1V DC-POWER INPUT.jpg)
P2: (WHITE),[POWER2] +9.5V±0.5V DC-POWER INPUT
P3: (BLACK), GND
P4: (YELLOW), VIDEO OUT
P5: (BLACK), GND
Two powers must be put in at the same time
If POWER1 down to +3.1V camera will be RESET
