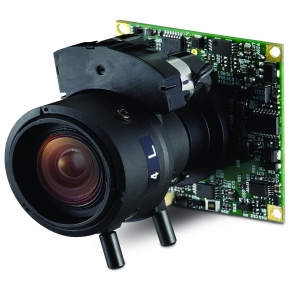

Product Name：WDR 7 Series - Module Type CCD camera
Moudel Number：UWDR-7M-VF
Feature：
● 14-Bit
● Dual Channel
● 1:100,000 Wide Dynamic Range without Time Lag
● 94dB Dynamic Range
● Resolution SVGA (800 x 600)
● Single Exposure
● 60 FPS Progressive
● Smear Free
● Excellent S/N (Great Sensitivity)
● High Gray-scale
● 30db Gain with 3D DNR
● Color Performance Under Low Illumination
● Full OSD (On Screen Display) function
● Option RS-485 I/F
● Build-in Vari-Focal Lens: 3~9mm / F1:1.2~2.1 (116.5 ~ 40.2)
|
Model No.
|
UWUWDR-7C7M-VF
|
|||
|
TV SYSTEMS
|
NTSC
|
PAL
|
||
|
IMAGE SENSOR
|
1/3-inch SVGA format CIS-II Sensor
|
|||
|
CCD TOTAL PIXELS
|
835(H) X 625(V)
|
|||
|
EFFECTIVE PIXELS
|
771(H) X 492(V)
|
753(H) X 582(V)
|
||
|
SYNC SYSTEM
|
Internal / Line lock (3.3V VD pulse input)
|
|||
|
MINIMUM ILLUMINATION
|
Less 0.01 lux @F1.2 / AGC (30dB) / SENS-UP (OFF)
|
|||
|
LENS & VIEW ANGLE
|
3.6~9mm / F1:1.2~2.1 (116.5°~40.2°)
|
|||
|
RESOLUTION
|
540TVL
|
|||
|
WHITE BALANCE
|
Mode
|
ATW / AWC
|
||
|
Range
|
3200 ~ 10000 ºK
|
|||
|
S / N RATIO TYPICAL
|
52dB (TYP) (Gamma, Aperture, AGC OFF,3D DNR ON)
|
|||
|
DYNAMIC RANGE
|
94dB
|
|||
|
FRAME INTEGRRATION
|
Select by OSD (Max.10X)
|
|||
|
H - MIRROR FUNCTION
|
Select by OSD or SW
|
|||
|
V - MIRROR FUNCTION
|
Select by OSD or SW
|
|||
|
B.L.C. FUNCTION
|
Select by OSD or SW (ON/OFF)
|
|||
|
ZOOM FUNCTION
|
Select by OSD
|
|||
|
FLICKLESS
|
Select by OSD
|
|||
|
ENHANCE
|
Select by OSD
|
|||
|
GAMMA CORRECTION
|
0.45
|
|||
|
GAIN CONTROL
|
AGC Auto / Menu Select by OSD (Fix 6dB,Auto 24dB,Total 30dB)
|
|||
|
AUTO IRIS
|
A.E.S. / DC-IRIS
|
|||
|
ICR CONTRAL
|
---
|
|||
|
DNR
|
Built-in 3D_DNR (Digital Noise Reduction)
|
|||
|
ELECTRONIC SHUTTER
|
A.E.S.
|
1/60(50)~1/120,000 sec.
|
||
|
FIX.
|
1/60(50), 1/100 (120), 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000sec.
|
|||
|
AUX CONNECTOR
|
Option RS-485 I/F
|
|||
|
VIDEO OUTPUT
|
1.0V p-p composite video at 75 ohm
|
|||
|
OPERATION TEMPERATURE
|
-20℃ TO +50℃
|
|||
|
OPERATIONAL HUMIDITY
|
within 85﹪RH
|
|||
|
POWER SUPPLY
|
DC12V±1V / 180mA
|
|||

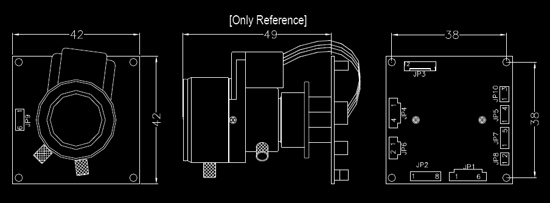

Dimension Unit (mm ±0.3mm)
