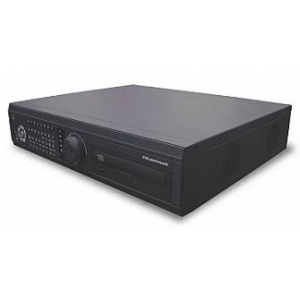

Product Name：16CH Pentaplex DVR
Moudel Number：UVR-8016
Feature：
●Pentaplex Function Allows Simultaneously Display, Recording, Playback, Backup and Remote Access
●GUI Interface: User Friendly Graphic User Interface makes it easier to Control with Mouse
●Shutter: Designing of Shutter makes it easier to Control the Speed during Playback or Frame Movement
●Pre Alarm Recording: Pre-Alarm-Recording save 5 sec. File of Each Channel in D1 Resolution while Alarm / Motion Triggered
●Audio Recording: Up to 16CH Audio Recording in G.723 Compression, Synchronize Perfectly with Video Recording
●PTZ Control: RS485 Interface Control the Speed Dome Function with Multiple Protocols
●Alarm Pop-Up: Up to 30 sec. Full Screen Pop up in Sequence while Alarm / Motion Triggered
●CMS & E-MAPPING: Professional CMS Allows the Remote Monitoring of 256 cameras. E-Mapping Function makes it easier to locate the cameras
●CD / DVR-RW Backup: Build-in CD-RW or DVR-RW makes it easier to Backup or Storage the Desired Files
●USB 2.0 Port: USB2.0 Port Support the Firmware Upgrade, Backup to USB Flash or USB HDD and Mouse for Operation
|
Model No.
|
UVR-8016
|
|
|
No. of Channel
|
16
|
|
|
Input
|
16CH Inputs 1.0Vp-p,
75ohm unbalanced (BNC Type)
16CH Audio Input, (RCA Type)
|
|
|
Output
|
BNC x2 (Main monitor x 1, Call monitor x1) / S-Video x1 / VGA x1 (Max. 1024x768)
|
|
|
Horizontal Resolution
|
720x480 (NTSC) / 720x576 (PAL)
|
|
|
S/N Ratio
|
More than 40dB
|
|
|
Color
|
16.7 Million
|
|
|
Split Screen
|
1 / 4 / 8 / 13 / 16
|
|
|
Zoom
|
Live & PB Available, 2x2 zoom
|
|
|
Sequence
|
Available
|
|
|
Display Rate
|
480 frames per second
(16x30)
|
|
|
Recording
|
||
|
Recording Rate(Max.)
|
480FPS
|
|
|
Record Quality
|
Super / High / Fine / Normal / Low
|
|
|
Compressed Picture
|
MPEG IV for Video, G.726 for Audio
|
|
|
Recording Quality
|
NTSC
|
480FPS(352X240), 120FPS(720X480)
|
|
PAL
|
400FPS(352X288), 100FPS(720X576)
|
|
|
Pre-alarm Rec.
|
Available
|
|
|
REC. Mode
|
Continuous / Schedule / Motion detect / Alarm
|
|
|
Playback
|
||
|
Playback search mode
|
Event search / Time search
|
|
|
Playback speed
|
Fast Forward: x1 / x2 / x4 / x8 / x16,
Fast Backward: x1 / x2 / x4 / x8 / x16 |
|
|
Multi-channel Playback
|
1 / 4 / 8 / 13 / 16
|
|
|
Sensor / Motion
|
||
|
Operation Mode
|
Pentaplex: Monitoring, Recording, Playback, Backup and Remote
|
|
|
Motion Detect
|
Area division: 16x12, ON/OFF sector selectable
Motion detect recording and relay on at the same time |
|
|
Network Function(RJ45)
|
Remote Viewer Thru TCP/IP, UDP, HTTP, SMTP, NTP, DHCP, DDNS
|
|
|
Network Operation
|
w/ AP: Monitoring, Remote Setting, PTZ Control,
Backup and Playback w/ IE: Viewer, Event Notification, Multi-user Access,
Two-way audio, CMS and E-MAP |
|
|
Alarm
|
Max. 16 Alarm Input / 4 relay Output
|
|
|
Serial Connector
|
||
|
Audio Connector
|
Input: RCA x16; Output: RCA x1
|
|
|
USB
|
USB 2.0 x2,(For System upgrade, system log file)
Support USB FLASH and USB HDD |
|
|
Video Backup
|
||
|
Back-Up
|
USB 2.0 / Network / CD-RW / DVD-RW (Optional)
|
|
|
PTZ Control
|
Multi-protocol
|
|
|
RS485
|
P/T/Z Dome
|
|
|
Storage
|
IDE HDD x4 (Max.)
|
|
|
Mechanical
|
||
|
Power Supply
|
DC 12V / 6.7A
|
|
|
Weight
|
G.W.7.5Kg
|
|
|
Dimension
|
430 (W) x 370 (D) x 90 (H)mm
|
|
|
Operating Temperature
|
40 ºF~104 ºF (5 ºC~+40 ºC)
|
|
|
Operating Humidity
|
Less than 80%
|
|

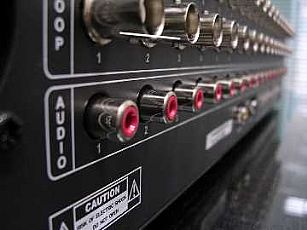

Rear View
